Thread: Conky text overwriting itself on the desktop

  1. #1
    Join Date
    Apr 2021

    Conky text overwriting itself on the desktop


    I installed Ubuntu Conky today (Aug 31 2021) but the text on the desktop seems to persist between overwriting. This leaves gibberish text on the desktop.

    I see others have this issue and I've tried all published fixes, to no avail.

    My config file is listed below. I cannot attach it to this post as the forum gives me 'The following errors occurred: .conkyrc: Invalid File' when trying to attach.

    Can anyone see what's wrong?



    # Create own window instead of using desktop (required in nautilus)
    own_window_class conky
    own_window yes
    own_window_hints undecorated,below,skip_taskbar,skip_pager
    background yes
    own_window_transparent yes
    # If own_window is yes, you may use type normal, desktop or overide
    own_window_type normal
    # Use double buffering (reduces flicker, may not work for everyone)
    double_buffer yes
    # Don't count buffers as used memory
    use_spacer right
    use_xft yes
    xftfont Terminus:size=10
    xftalpha 1
    # Update interval in seconds
    update_interval 2.0
    # Size of window
    minimum_size 130
    maximum_width 201
    # Draw shades?
    draw_shades no
    # Text stuff
    draw_outline yes
    draw_borders no
    draw_graph_borders yes
    uppercase no
    # border margins
    border_margin 2
    stippled_borders 0
    border_width 1
    # Default colors and also border colors
    default_color FFFFFF
    default_shade_color 5D009C
    default_outline_color 000000
    # Text alignment, other possible values are commented
    alignment top_left
    #alignment top_right
    #alignment bottom_left
    #alignment bottom_right
    # Gap between borders of screen and text
    gap_x 5
    gap_y 0
    override_utf8_locale yes
    # stuff after 'TEXT' will be formatted on screen
    ${color #A548CC}Date:${color}${font size=11}    ${time %a %e %b %G}${font}
    ${color #A548CC}Time:${color}${font size=11}      ${time %I:%M:%p}${font}
    ${color #A548CC}Uptime:${color}    ${uptime}
    ${color #A548CC}Kernel:${color}      ${exec uname -r|cut -b1-9}
    ${color #A548CC}Temp:${color}       ${acpitemp}C
    ${color #A548CC}CPU:${color}         ${freq_g}GHz  (${cpu}%)
    ${color #A548CC}Highest CPU:
    ${color red}${top name 1}${top_mem cpu 1}
    ${color}${top name 2}${top cpu 2}
    ${color}${top name 3}${top cpu 3}
    ${color}${top name 4}${top cpu 4}
    ${color #A548CC}Highest MEM:
    ${color red}${top_mem name 1}${top_mem mem 1}
    ${color}${top_mem name 2}${top_mem mem 2}
    ${color}${top_mem name 3}${top_mem mem 3}
    ${color}${top_mem name 4}${top_mem mem 4}
    ${color #A548CC}MEM:   ${membar 3,100}${alignr}(${memperc}%)
    ${color}${mem} / ${memmax}
    ${color #A548CC}SWAP: ${swapbar 3,100}${alignr}(${swapperc}%)
    ${color}${swap} / ${swapmax}
    ${color #A548CC}ROOT:  ${fs_bar 3,100 /}${alignr}(${fs_free_perc /}%)
    ${color}${fs_used /}/ ${fs_size /}
    ${color #A548CC}HOME: ${fs_bar 3,100 /home}${alignr}(${fs_free_perc /home}%)
    ${color}${fs_used /home}/ ${fs_size /home}
    ${color #A548CC}BOOT:  ${fs_bar 3,100 /boot}${alignr}(${fs_free_perc /boot}%)
    ${color}${fs_used /boot}/ ${fs_size /boot}
    Last edited by deadflowr; August 31st, 2021 at 07:56 PM. Reason: code tags

  2. #2
    Join Date
    Apr 2021

    Re: Conky text overwriting itself on the desktop

    Update; setting 'own_window_transparent no' has fixed the gibberish text, but now the background is black. Not a deal breaker. I think this might be a bug.

  3. #3
    Join Date
    Jul 2008
    The Left Coast of the USA

    Re: Conky text overwriting itself on the desktop

    I suspect that you may have your conky running in more than one instance. As soon as you changed the background, you covered on or the other up, so it looks "good" except for the black background.

    You can use top or htop to see houw many instances you are running. If more than one, issue

    killall conky
    to stop all instances and then run your script to start it.
    Please read The Forum Rules and The Forum Posting Guidelines

    A thing discovered and kept to oneself must be discovered time and again by others. A thing discovered and shared with others need be discovered only the once.
    This universe is crazy. I'm going back to my own.

  4. #4
    Join Date
    Apr 2021

    Re: Conky text overwriting itself on the desktop

    Thanks for the tip.

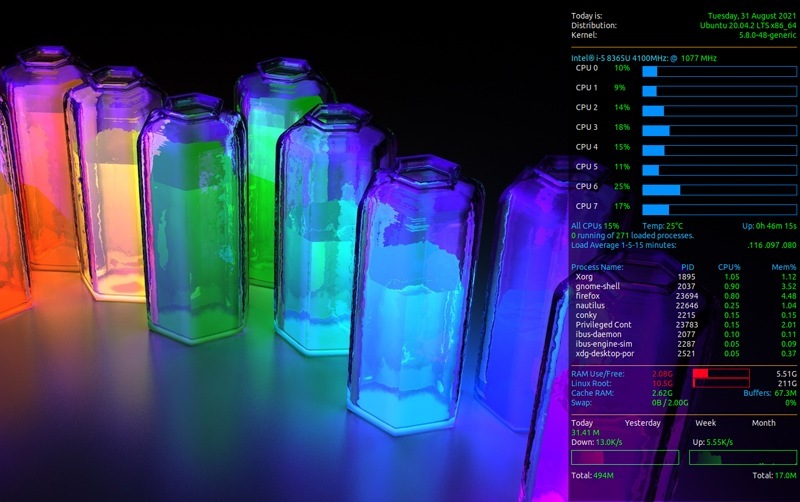

    I looked for another config file and the new file below seems to have fixed it. A lot more complicated, but it displays more detail. Screenshot attached. Config file below. I had to install vnstat, vnstati and net-tools. Then set vnstat to monitor my wifi connection (wlo1), then hack the conkyrc file network section to use wlo1.

    override_utf8_locale yes
    use_xft yes
    xftfont ubuntu:size=10.5
    xftalpha 0.5
    uppercase no
    no_buffers yes              # Subtract cached and buffered ram from memory usage.
    short_units yes             # Use "G" instead of "GiB"
    text_buffer_size 2048
    update_interval 2.5          # change to .001 for 1000 times per second stress test
    own_window_class Conky
    own_window yes
    own_window_type dock
    own_window_transparent no
    own_window_argb_visual yes
    own_window_argb_value 145  # semi-transparent
    own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager
    double_buffer yes
    minimum_size 400
    maximum_width 400
    alignment top_right
    draw_shades yes
    # off-white
    default_color ECEAE4
    # blue
    color1 1EB5FF
    # light blue
    color2 30DDFB
    # dark blue
    color3 0090ff
    # lime
    color4 98FF76
    default_shade_color 000000
    draw_outline no
    draw_borders no
    stippled_borders 0
    # Distro     |
    ${color}Today is:${color green}$alignr${time %A,}$alignr ${time %e %B %G}
    ${color}Distribution:${color green}$alignr ${execi 6300 cat /etc/} $machine
    ${color}Kernel:$alignr${color green} $kernel
    ${color orange}${voffset 2}${hr 1}
    # i5 CPU|
    ${color2}${voffset 5}Intel® i-5 8365U 4100MHz: ${color1}@  ${color green}${freq} MHz
    ${color}${goto 13}CPU 0 ${goto 81}${color green}${cpu cpu1}% ${goto 131}${color3}${cpubar cpu1 18}
    #${cpugauge cpu1 20,40}
    #${cpugraph 1 15,200 555555 AAAAAA -l}
    ${color}${goto 13}CPU 1 ${goto 81}${color green}${cpu cpu2}% ${goto 131}${color3}${cpubar cpu2 18}
    ${color}${goto 13}CPU 2 ${goto 81}${color green}${cpu cpu3}% ${goto 131}${color3}${cpubar cpu3 18}
    ${color}${goto 13}CPU 3 ${goto 81}${color green}${cpu cpu4}% ${goto 131}${color3}${cpubar cpu4 18}
    ${color}${goto 13}CPU 4 ${goto 81}${color green}${cpu cpu5}% ${goto 131}${color3}${cpubar cpu5 18}
    ${color}${goto 13}CPU 5 ${goto 81}${color green}${cpu cpu6}% ${goto 131}${color3}${cpubar cpu6 18}
    ${color}${goto 13}CPU 6 ${goto 81}${color green}${cpu cpu7}% ${goto 131}${color3}${cpubar cpu7 18}
    ${color}${goto 13}CPU 7 ${goto 81}${color green}${cpu cpu8}% ${goto 131}${color3}${cpubar cpu8 18}
    # Temperature|
    #${color1}All CPUs ${color green}${cpu}% ${goto 131}${color1}Temp: ${color green}${execpi .001 cat /sys/class/thermal/thermal_zone7/temp | cut -c1-2}°C ${alignr}${color1}Up: ${color green}$uptime
    # Next line is for kernel >= 4.13.0-36-generic
    ${color1}All CPUs ${color green}${cpu}% ${goto 131}${color1}Temp: ${color green}${hwmon 1 temp 1}°C ${alignr}${color1}Up: ${color green}$uptime
    # Next line is for temperature with Kerenel 4.4
    #${color1}All CPUs ${color green}${cpu}% ${goto 131}${color1}Temp: ${color green}${hwmon 0 temp 1}°C ${alignr}${color1}Up: ${color green}$uptime
    ${color green}$running_processes ${color1}running of ${color green}$processes ${color1}loaded processes.
    ${color1}Load Average 1-5-15 minutes: ${alignr}${color green}${execpi .001 (awk '{printf "%s/", $1}' /proc/loadavg; grep -c processor /proc/cpuinfo;) | bc -l | cut -c1-4} ${execpi .001 (awk '{printf "%s/", $2}' /proc/loadavg; grep -c processor /proc/cpuinfo;) | bc -l | cut -c1-4} ${execpi .001 (awk '{printf "%s/", $3}' /proc/loadavg; grep -c processor /proc/cpuinfo;) | bc -l | cut -c1-4}
    # Prcoesses  |
    ${color1}${voffset 5}Process Name: ${goto 200}PID ${goto 265}CPU% ${alignr}Mem%
    ${color}${goto 13}${top name 1} ${goto 190}${top pid 1} ${goto 270}${color green}${top cpu 1} ${alignr}${top mem 1}
    ${color}${goto 13}${top name 2} ${goto 190}${top pid 2} ${goto 270}${color green}${top cpu 2} ${alignr}${top mem 2}
    ${color}${goto 13}${top name 3} ${goto 190}${top pid 3} ${goto 270}${color green}${top cpu 3} ${alignr}${top mem 3}
    ${color}${goto 13}${top name 4} ${goto 190}${top pid 4} ${goto 270}${color green}${top cpu 4} ${alignr}${top mem 4}
    ${color}${goto 13}${top name 5} ${goto 190}${top pid 5} ${goto 270}${color green}${top cpu 5} ${alignr}${top mem 5}
    ${color}${goto 13}${top name 6} ${goto 190}${top pid 6} ${goto 270}${color green}${top cpu 6} ${alignr}${top mem 6}
    ${color}${goto 13}${top name 7} ${goto 190}${top pid 7} ${goto 270}${color green}${top cpu 7} ${alignr}${top mem 7}
    ${color}${goto 13}${top name 8} ${goto 190}${top pid 8} ${goto 270}${color green}${top cpu 8} ${alignr}${top mem 8}
    ${color}${goto 13}${top name 9} ${goto 190}${top pid 9} ${goto 270}${color green}${top cpu 9} ${alignr}${top mem 9}
    ${color orange}${voffset 2}${hr 1}
    # Storage    |
    ${color1}RAM Use/Free:${goto 148}${color red}$mem ${color red} ${goto 220}${membar 15,100} $alignr${color}${memeasyfree}
    ${color1}Linux Root:${goto 148}${color red}${fs_used /} ${color red} ${goto 220}${fs_bar 15,100 /} $alignr${color}${fs_free /}
    ${color1}${if_mounted /mnt/old}Broken 16.04:${goto 148}${color red} ${fs_used /mnt/old} ${color red} ${goto 220}${fs_bar 15,100 /mnt/old} $alignr${color}${fs_free /mnt/old}${else}Cache RAM:${goto 148}${color green}${cached} ${color1} ${alignr}Buffers: ${color green} ${buffers}${endif}
    ${color1}${if_mounted /mnt/e}WSL+Linux:${goto 148}${color red}${fs_used /mnt/e} ${color red} ${goto 220}${fs_bar 15,100 /mnt/e} $alignr${color}${fs_free /mnt/e}${else}Swap:${goto 148}${color green}${swap} / ${swapmax} $alignr${color green}${swapperc}%${endif}
    #${color}NVMe Win 10:${goto 148}${if_mounted /mnt/c}${color green} ${fs_used /mnt/c} / ${fs_size /mnt/c} $alignr${color green}${fs_used_perc /mnt/c}%${else}${color yellow}/mnt/c${endif}
    #${color}${if_mounted /mnt/d}HGST_Win10:${goto 148}${color red} ${fs_used /mnt/d} / ${fs_size /mnt/d} $alignr${color green}${fs_used_perc /mnt/d}%${else}Cache RAM:${goto 148}${color green}${cached} ${color} Buffers: ${color green} ${buffers}${endif}
    #${color}${if_mounted /mnt/e}WSL+Linux:${goto 148}${color red}${fs_used /mnt/e} / ${fs_size /mnt/e} $alignr${color red}${fs_used_perc /mnt/e}%${else}Swap:${goto 148}${color green}${swap} / ${swapmax} $alignr${color green}${swapperc}%${endif}
    ${color orange}${voffset 2}${hr 1}
    # Network    |
    #${color1}Network using vnStat "-i", "-w" and "-m"
    ${color}${goto 5}Today ${goto 100}Yesterday ${goto 225}Week ${goto 325}Month ${color green}
    # vnstatd updates database every five minutes
    ${execi 300 vnstat -i wlo1 | grep "today" | awk '{print $8" "substr ($9, 1, 1)}'} ${goto 110}${execi 300 vnstat -i wlo1 | grep "yesterday" | awk '{print $8" "substr ($9, 1, 1)}'} ${goto 220}${execi 300 vnstat -i wlo1 -w | grep "current week" | awk '{print $9" "substr ($10, 1, 1)}'} ${goto 315}${execi 300 vnstat -i wlo1 -m | grep "`date +"%b '%y"`" | awk '{print $9" "substr ($10, 1, 1)}'}
    ${color}Down: ${color green}${downspeed wlo1}/s ${color}${goto 220}Up: ${color green}${upspeed wlo1}/s
    ${downspeedgraph wlo1 25,190 000000 ff0000} ${alignr}${upspeedgraph wlo1 25,190 000000 00ff00}$color
    Total: ${color green}${totaldown wlo1} $color${alignr}Total: ${color green}${totalup wlo1}
    #Bit Rate:$color ${wireless_bitrate wlo1}
