Thread: tom.swartz07 Custom Conky Desktop!

  1. #1
    Join Date
    May 2009
    Location
    Lancaster, PA
    Beans
    1,334
    Distro
    Ubuntu Development Release

    Lightbulb tom.swartz07 Custom Conky Desktop!

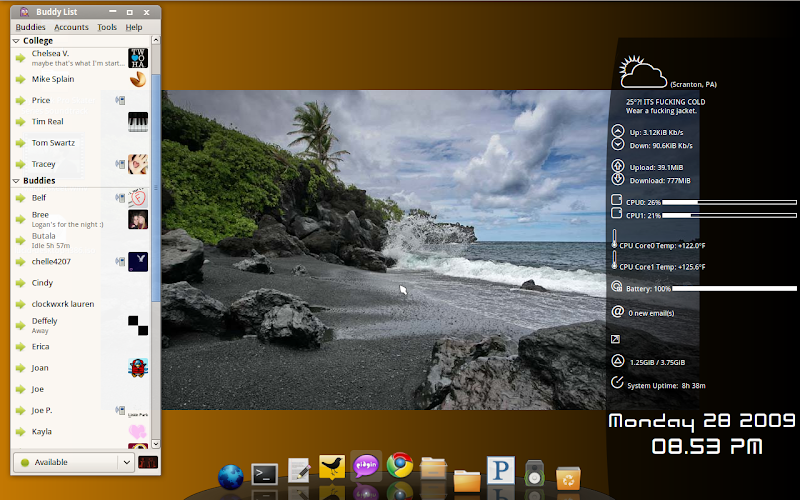

    Over the past few weeks, Ive received quite a few compliments about my desktop and even more requests about how to create the same look. Ive decided to write up a How-To highlighting each aspect of my desktop.

    Before I begin, I would like to point out that I have all of this code, pre-compiled and ready to download from my Launchpad BZR page. https://code.launchpad.net/~tom-swartz07/+junk/main

    Follow the instructions on the site to grab all of my files mentioned here (with the exception of Conky). These will be the most up-to-date versions of the files!!!!


    First up: The Backgrounds


    Bing Wallpaper


    With the help of a few other scripts, I was able to patch together a program to grab the background image from Bing.com and set it as your wallpaper. In order to set this up, you need to add the following script to your home folder and then add it to your startup applications.

    To do this, you could save the script as .bing_changer.sh in your Home folder. Note the period at the beginning of the filename- this will assure that the file is normally 'hidden' from your usual view. Now, to add the program to startup, simply navigate to system>preferences>startup applications. Pick a name for the process, and then in the 'command' field- click "browse" and select it from your home folder (you may need to hit CTRL + H to see the hidden file)


    Now the script:
    Code:
    #!/bin/bash
    # bing wallpaper downloader by YoungJesus, 2009.
    # based on Siddharth Prakash Singh (http://www.spsneo.com/blog) php bing wallpaper downloader

    # modify this, if you want to save to other place
    #  - $HOME: your home dir
    #  - %F: full date (%Y-%m-%d)
    #  - other date format: man date :P
    OUTPUT=`date "+$HOME/Pictures/bing/bing_bg.%F.jpg"`

    # get the bing.com page, and separate the background image (DONT touch this)
    IMG=`wget -q http://www.bing.com -O- | sed -r "s/[\]//g;s/.*g_img=\{url:'([^']+)'.*/\1/gp;d"`

    # get the background image to the output (DONT touch this)
    wget -q "http://www.bing.com$IMG" -O "$OUTPUT"
    # error handle
    if [ $? -gt 0 ]; then
    	echo "there is a problem with downloading.."
    	exit 1
    fi

    # setup the background
    gconftool-2 -s -t string /desktop/gnome/background/picture_filename "$OUTPUT"
    # set the background position
    #gconftool-2 -s -t string /desktop/gnome/background/picture_options "centered"
    # set the background color
    #gconftool-2 --type string --set /desktop/gnome/background/primary_color "black"

    exit 0

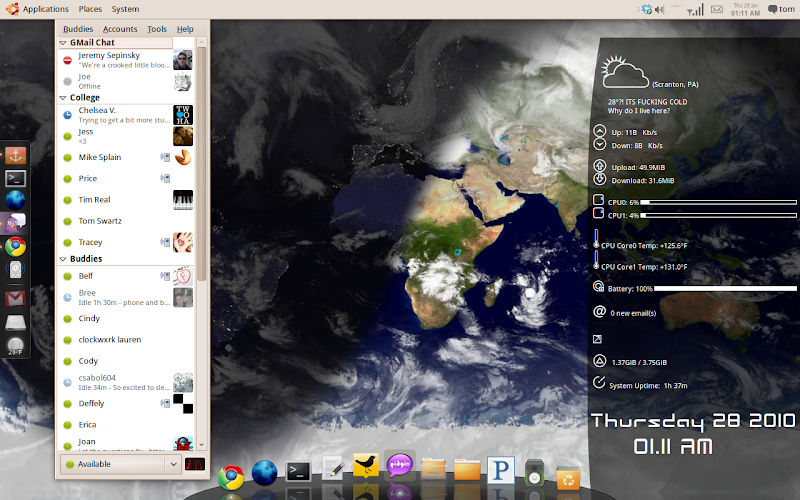

    World View Desktop


    This is one script that I am particularly pleased with. I currently use it as my background and have spent quite a bit of time tweaking it and optimizing it. This script also follows the same idea as the Bing changer in that it takes an image from a website and sets it as your wallpaper. This script differs in the fact that it repeats the process every 5 to 10 minutes giving you a 'live' view of the Earth. As far as memory and CPU consumption- on my system, it only uses around 2mb of RAM and practically no CPU.

    Setup for this script is the same. Save the code to your home folder, and add it to your startup applications. This will run by itself in the background and keep your background up to date. The image is saved in ~/.gnome2, you could add it from there.

    Heres the code:
    Code:
    #!/bin/bash
    #Live View Wallpaper Changer. Created by Thomas Swartz 2009/2010
    cd ~/.gnome2/
    while [[ 1 ]]; do
    	COUNTER=0
    	while [[ COUNTER=$[ $COUNTER + 1 ] -lt 60 ]]; do
    		wget http://www.opentopia.com/images/cams/world_sunlight_map_rectangular.jpg -O world.jpg
    		if [[ $(file world.jpg | grep JPEG) ]]; then
    			mv world.jpg world_sunlight_Wallpaper.jpg
    			break
    		fi
    		sleep 5
    	done
    	sleep 300
    done

    Next- Conky!

    My Conky

    I originally was inspired to use conky when I saw a post on Lifehacker: http://lifehacker.com/5067341/custom...x-productivity

    This was the original post that inspired me to create what is now my current conky desktop. Its absolutely stunning: http://lifehacker.com/5068294/beauti...st-conky-setup

    Since then, both the programming of conky and my skills have grown. I use a number of small scripts to keep up to date with useful information about my system. Programs such as lm-sensors, and a few customized scripts help make my conky look the way it does.


    I use Dropbox to keep all of my files synced. Its a free service that allots 2GB of storage to you, letting you sync files to any computer- much like an internet based USB key. Theres a link in my signature to get Dropbox if you dont already have it. I would highly recommend that you keep all of the conky files there; they are small enough to keep synced, yet make such a great difference when you are missing them! You could get Dropbox here: DROPBOX

    To use my conkyrc file (a simple script that tells conky what to show on your desktop) you need to set up a few simple things first.

    First, lets get all of the dependent files. In a terminal (applications>accessories>terminal) type the following
    Code:
    sudo apt-get install lm-sensors
    Once its installed, you need to set it up- majority of the time, you could just run
    Code:
    sudo sensors-detect
    and hit Y for all of the questions.
    Once you have sensors enabled, you could test it -
    Code:
    sensors -f
    will give you your computer's temperature in Fahrenheit.

    Now you need to install some sweet fonts. In your home folder, you will need to create a folder titled .fonts (again, a period in front so its hidden). You might already have one, if so just go there. In the attached file here, there is a zip file with fonts- simply copy them from the archive to your .fonts folder.

    Now for the conky setup. If you dont already have conky installed, get it by
    Code:
    sudo apt-get install conky
    Copy the .conkyrc file to your home folder, and you should be 90% of the way there. Edit the .conkyrc file to point to the locations of the other files (scripts, email passwords, etc) this will allow conky to check your email (securely, and read-only) and report if you have any new messages.

    Here are all of the files you need to get started:
    http://dl.dropbox.com/u/1864354/Shared%20Conky.zip

    Finally:
    DOCKS!!

    Many people comment about my neat looking docks. I use a combination of Avant Window Navigator and Docky. Unfortunately, neither of the versions I use are available from the standard Software Center. You could add them from these sources if youre using Karmic;

    For Avant Window Navigator (trunk):
    Code:
    sudo add-apt-repository ppa:awn-testing/ppa
    For Docky:
    Code:
    sudo add-apt-repository ppa:docky-core/ppa
    Then update your system and add them from Synaptic package manager. The files you need for AWN are all labeled with 'awn-trunk', there are quite a few, so make sure you get them all.

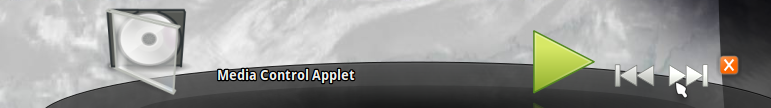

    AWN has some really neat features; including a Pandora Radio applet and a Media Player applet that changes the look of the whole dock when you click to use it:


    To install Docky, simply run
    Code:
    sudo apt-get install docky


    Last but not least, I should mention that if you are really looking to get under the hood of your Ubuntu system, you could install the program Ubuntu Tweak. Available here: http://ubuntu-tweak.com/
    This will allow you to get in and tweak some really cool things about your system that would normally take some serious command line work.


    Other than that, I think Ive covered pretty much everything about my desktop so far! If you have any questions or concerns about anything mentioned here, PLEASE let me know!

    Thanks again for all of the compliments and praise about my computer. I really spent a lot of time working on it and it truly means a lot to me.

    Rock on!

    ~Tom
    Last edited by tom.swartz07; April 12th, 2010 at 01:27 AM. Reason: Added BZR page info
    Java Guide Media support Flash x64 Grub2 Get Dropbox! My Look! RSync Twitter

    "Windows 7 was my idea"- I guess Microsoft enjoys copyright infringement?

  2. #2
    Join Date
    Oct 2008
    Beans
    255
    Distro
    Ubuntu 10.04 Lucid Lynx

    Re: tom.swartz07 Custom Conky Desktop!

    Thanks for all of this, I needed that conky!
    The answer to life, the universe and everything...
    vim -c help42

  3. #3
    Join Date
    May 2009
    Location
    Lancaster, PA
    Beans
    1,334
    Distro
    Ubuntu Development Release

    Re: tom.swartz07 Custom Conky Desktop!

    Quote Originally Posted by raktarok View Post
    Thanks for all of this, I needed that conky!
    Sure thing! I know you and at least 3 others were looking for this within the past week! haha
    Java Guide Media support Flash x64 Grub2 Get Dropbox! My Look! RSync Twitter

    "Windows 7 was my idea"- I guess Microsoft enjoys copyright infringement?

  4. #4
    Join Date
    Mar 2008
    Location
    Deep South Texas
    Beans
    1,890
    Distro
    Ubuntu 11.04 Natty Narwhal

    Re: tom.swartz07 Custom Conky Desktop!

    One more conky page to add to my ever-growing collection of all things conky.

    Many Thanks for Sharing!
    "Free software is a matter of liberty, not price." -- Richard Stallman
    So don't forget to tip your software authors!

  5. #5
    Join Date
    May 2009
    Location
    Lancaster, PA
    Beans
    1,334
    Distro
    Ubuntu Development Release

    Re: tom.swartz07 Custom Conky Desktop!

    Quote Originally Posted by egalvan View Post
    One more conky page to add to my ever-growing collection of all things conky.

    Many Thanks for Sharing!
    Sure thing! Glad you like it!
    Java Guide Media support Flash x64 Grub2 Get Dropbox! My Look! RSync Twitter

    "Windows 7 was my idea"- I guess Microsoft enjoys copyright infringement?

  6. #6
    Join Date
    Apr 2007
    Location
    Ottawa, Canada
    Beans
    740
    Distro
    Kubuntu Development Release

    Re: tom.swartz07 Custom Conky Desktop!

    That world view looks awesome. *Yoink!*

    [Edit]

    Okay, so I added it to the startup apps, made the script executable and restarted my PC. In the script I saw that it renamed the jpg to world_sunlight_Wallpaper.jpg, but I could never find that file in my ~/ folder.
    Last edited by Jordanwb; February 4th, 2010 at 10:26 PM.

  7. #7
    Join Date
    Feb 2006
    Location
    So.San Francisco
    Beans
    745

    Re: tom.swartz07 Custom Conky Desktop!

    Quote Originally Posted by Jordanwb View Post
    That world view looks awesome. *Yoink!*

    [Edit]

    Okay, so I added it to the startup apps, made the script executable and restarted my PC. In the script I saw that it renamed the jpg to world_sunlight_Wallpaper.jpg, but I could never find that file in my ~/ folder.
    the wallpaper gets dumped in the ' ~/.gnome2/' per the script.
    Reason: no beans

  8. #8
    Join Date
    May 2009
    Location
    Lancaster, PA
    Beans
    1,334
    Distro
    Ubuntu Development Release

    Re: tom.swartz07 Custom Conky Desktop!

    Quote Originally Posted by darco View Post
    the wallpaper gets dumped in the ' ~/.gnome2/' per the script.
    Forgot about that! its fixed now.

    Thanks for pointing that out, you two!
    Java Guide Media support Flash x64 Grub2 Get Dropbox! My Look! RSync Twitter

    "Windows 7 was my idea"- I guess Microsoft enjoys copyright infringement?

  9. #9
    Join Date
    Apr 2007
    Location
    Ottawa, Canada
    Beans
    740
    Distro
    Kubuntu Development Release

    Re: tom.swartz07 Custom Conky Desktop!

    I added this directly after the move:

    Code:
    notify-send "The Wallpaper has been updated" -i /usr/share/icons/gnome-colors-common/32x32/apps/gnome-display-properties.png -t 5000
    You need libnotify-bin

  10. #10
    Join Date
    May 2009
    Location
    Lancaster, PA
    Beans
    1,334
    Distro
    Ubuntu Development Release

    Re: tom.swartz07 Custom Conky Desktop!

    Quote Originally Posted by Jordanwb View Post
    I added this directly after the move:

    Code:
    notify-send "The Wallpaper has been updated" -i /usr/share/icons/gnome-colors-common/32x32/apps/gnome-display-properties.png -t 5000
    You need libnotify-bin
    Thats a pretty cool little tweak!
    Personally, I wouldnt use it because it would pop up every 5 minutes when the image is updated, but its a definite cool tweak nonetheless!
    Java Guide Media support Flash x64 Grub2 Get Dropbox! My Look! RSync Twitter

    "Windows 7 was my idea"- I guess Microsoft enjoys copyright infringement?
